Anti Vibration Rubber Pads

Next > >

<< Previous

Send Inquiry

Product Code : Insulation Plates

Brand Name : Dynemech

Price And Quantity

Minimum Order Quantity
as per requirement
Unit of Measure
Unit/Units

Product Description

We are the leading manufacturer and exporter of an extensive range of Anti Vibration Rubber Pads. Offered pads are perfectly manufactured at our contemporary production unit by making use of high grade materials in compliance with the international quality standards. These pads are widely used for giving vibration damping solution to every machine and tool. The entire range of Anti Vibration Rubber Pads is available in a variety of sizes and shapes depending on the customersâ€™ requirements.

Features:

Easy to fix
Robust construction
High load bearing strength

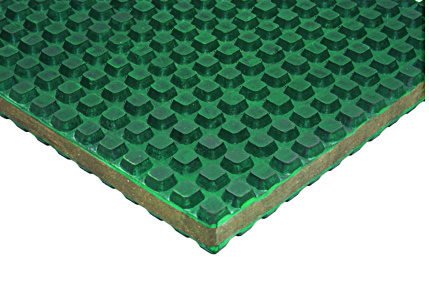

Anti Vibration Rubber Pads

Dynemech Insulation Plates:
Dynemech Insulation plates are made from the compound of Nitrile Rubber, Cork, Synthetic Fiber which at varying compositions give different natural frequencies for providing vibration damping solution to almost every machine tool.

Type	Load Kg./Sq. cm.	THKS. mm	Applications
Du	3 - 9	15	Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing & Textile Machines (For Machines having high axial forces.) Coefficient of friction 0.9, Natural Frequency range 35 Hz - 18 Hz.
Dm	5 - 10	15	Lathe Machines, Milling Machines, Grinding Machines, Machining Centres, Turning Centres etc. Coefficient of friction 0.7, Natural Frequency range 50 Hz - 30 Hz.
Di	5 - 14	25	For Machines with high vertical dynamic forces such as Power Presses, Punching Machines, Stamping Machines, Shearing Machines etc.Coefficient of friction 0.8, Natural Frequency range 25 Hz - 7 Hz.
Dp	1 - 4	20	Tuned to low natural frequency, suitable for passive vibration control of measuring & Testing Machines, Grinders etc. Coefficient of friction 0.8, Natural Frequency range 20 Hz - 7 Hz.
Ds1	2.5 - 5	20	Light Weight Presses, Tool Room Machines, Compressors etc. on Ground Floor as well as upper Floors. Coefficient of friction 0.8, Natural Frequency range 35 Hz - 18 Hz.
Ds2	2 - 8	25	High Vibration Insulation for both active & passive range, Medium Presses, Stamping Machines, Also Well suited for high speed rotating machines on upper floors.Coefficient of friction 0.8, Natural Frequency range 35 Hz - 8 Hz.
Dhs1	5-15	65	Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines. Coefficient of friction 0.8, Natural Frequency range 25H - 8Hz.
Dh	10 - 35	15	Very Heavy and long Bed Machines, Long Machining centres. Planners, etc Coefficient of friction 0.6, Natural Frequency range 70 Hz - 45 Hz.
Da1	2 - 18	2	Anti-Skid Plate
Da2	2 - 10	8	Anti-Skid Plate
