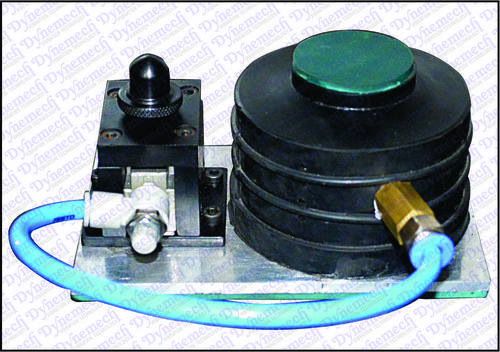

Pneumatic Air Spring

Pneumatic Air Spring
Pneumatic Air Spring
Product Code : Series DLPM
Brand Name : DYNEMECH SYSTEMS
Product Description

Having 16 years of experience in this field, our reliable enterprise is engrossed in offering optimum quality range of Pneumatic Air Spring. This air spring is manufactured at our premises using premium quality components with the aid of ultra-modern techniques. Designed with three master pneumatic isolators to ensure precision leveling, the offered air spring is especially used in load sensing and height controlling applications. In addition, our valued clients can avail this Pneumatic Air Spring at highly competitive prices from us.

Key points:

  • Smooth operations
  • Robust construction
  • High efficiency
  • Long life

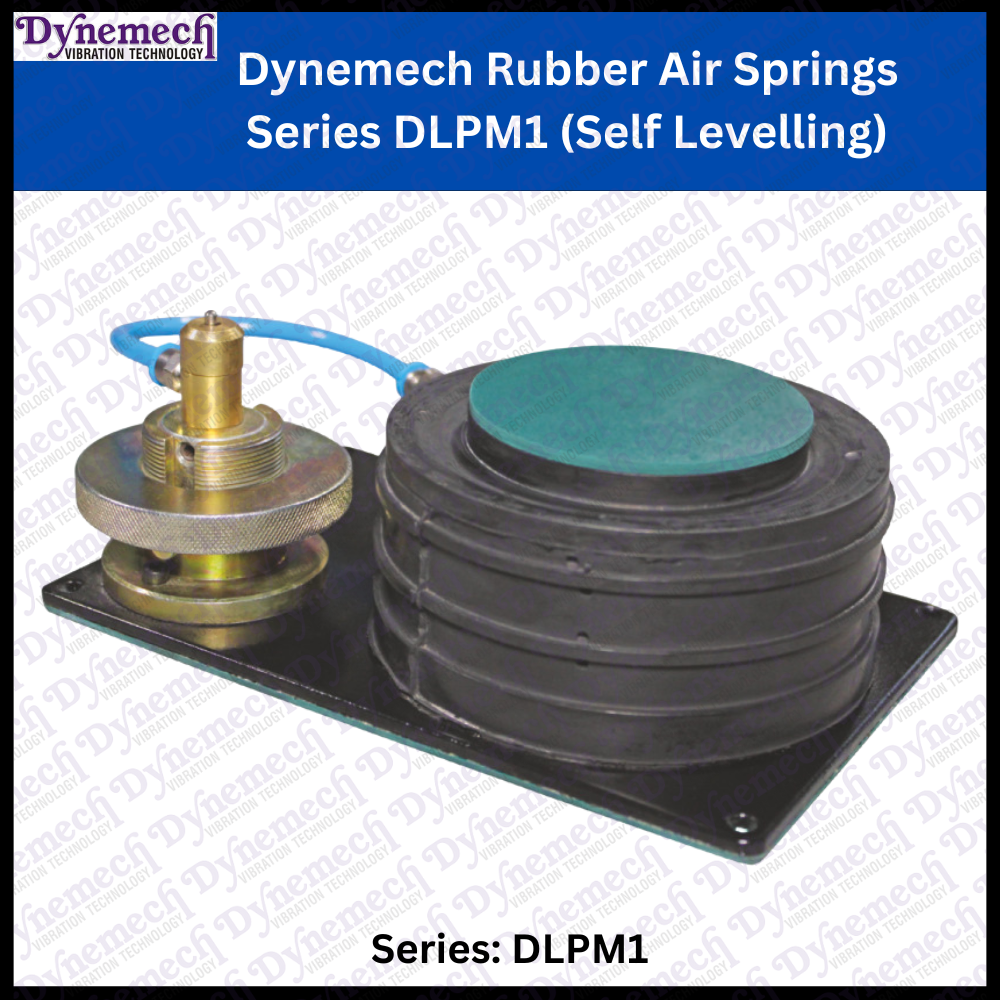

A complete Dynemech DLPM system consists of three master pneumatic isolators for 3-point precision leveling. Each pneumatic damping isolator consists of a leveling valve which is the load sensing and height controlling element. Systems are supplied with automatic height control valves, tubing and all other pneumatic accessories necessary for complete system installation.

Dynemech DLPM Mounts have minimal setting time. Long setting time using pneumatic isolators is not acceptable because precision measuring and positioning machines can suffer repeatability errors and through put losses.


Isolation Characteristics

Natural Frequency for the Pneumatic Isolator

  • Vertical - 4 - 6 Hz
  • Horizontal - 4.5 - 7 Hz

Damping

  • Vertical (Adj.) - 6% - 20%
  • Horizontal - 5% - 6%

Technical Specifications

Model

Load (Kg/pc)

Max. Pressure Bar

S mm

D mm

H App. mm

d mm

h mm

Bolt

DLMP1

25 - 60

3

145

84

64

41

6

M10

DLMP2

80 - 300

5

180

120

70

80

6

M12

DLMP3

270 - 800

6

240

174

88

100

6

M16

DLMP4

650 - 1500

6

310

250

108

127

8

M16

DLMP5

1200 - 3400

6

425

360

111

200

8

M20

DLMP6

3000 - 6500

6

555

480

114

315

8

M20
