Wedge Mounts

Wedge Mounts
Wedge Mounts
Product Code : Precision Mounts
Brand Name : Dynemech
Product Description

In order to fulfill the requirements of our valuable clients, we are dedicated towards manufacturing and supplying an extensive range of Wedge Mounts. Offered mounts are well manufactured at our sound unit by making use of the premium quality materials that are obtained from the certified vendors of the market. This range of mounts is highly appreciated by our clients due to their easy installation and strong construction. Offered Wedge Mounts are widely used in lathe, precision grinding as well as drilling machines.

Features:

  • Easy to mount
  • Optimum impact strength
  • Easy maintenance

Further Details:

Wedge Mounts

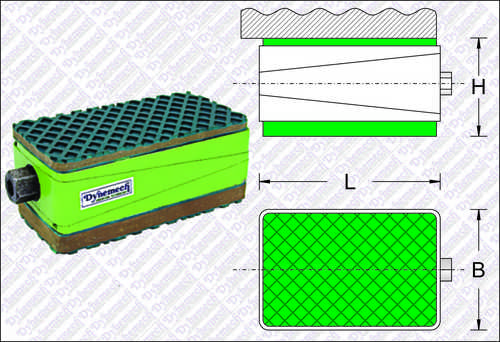

Dynemech Wedge Mounts are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.
Wedge Mounts, Series DFP have a height of 150 mm at mean position to help proper cleaning and repairing under the machine (as per IMTMA guidelines for TPM in Machine Installation). All other specifications are similar to Series DF, as given below.

Model Load Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm) Adjust range (mm) Applications
DF1-u
DF2-u
DF3-u
DF4-u
DF5-u
DF6-u
DF7-u
400
900
1500
3200
4000
6400
9600
100
150
200
200
200
250
300
50
75
100
200
250
320
400
59
63
69
69
95
95
95
8
10
10
12
18
18
20
Top anti skid plate Da2 & bottom insulation plate Du.
Application: Tool Room Machines, Plastic Injection Moulding machines, Pressure Die Casting machines, Shaper, printing and Textile Machines etc.
DF1-m
DF2-m
DF3-m
DF4-m
DF5-m
DF6-m
DF7-m
500
1200
2000
4000
5000
8000
12000
100
150
200
200
200
250
300
50
75
100
200
250
320
400
53
57
63
63
89
89
89
8
10
10
12
18
18
20
Top anti skid plate Da1 & bottom insulation plate Dm.
Applications: Lathe Machines, Machining Centres, Milling machines, Precision Grinding Machines, Drilling machines, turining Centres, Transfer Lines etc.
DF1-s2
DF2-s2
DF3-s2
DF4-s2
DF5-s2
DF6-s2
DF7-s2
350
800
1400
2800
3500
5500
8500
100
150
200
200
200
250
300
50
75
100
200
250
320
400
63
67
73
73
99
99
99
8
10
10
12
18
18
20
Top anti skid plate Da1 & bottom insulation plate Ds2.
Applications: Medium presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed machines on upper floors.
DF1-i
DF2-i
DF3-i
DF4-i
DF5-i
DF6-i
DF7-i
600
1500
2500
5200
6500
10000
15000
100
150
200
200
200
250
300
50
75
100
200
250
320
400
69
73
79
79
105
105
105
8
10
10
12
18
18
20
Top anti skid plate Da2 & bottom insulation plate Di.
Applications: Power presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
DF1-p
DF2-p
DF3-p
DF4-p
DF5-p
DF6-p
DF7-p
180
400
725
1450
1800
2900
4400
100
150
200
200
200
250
300
50
75
100
200
250
320
400
58
62
69
69
94
94
94
8
10
10
12
18
18
20
Top anti skid plate Da1 & bottom insulation plate Dp.
Applications: Measuring & testing Machines, Surface Plates, Hardness Testers, Microscopes, EDM Machines, Profile Projectors etc.
