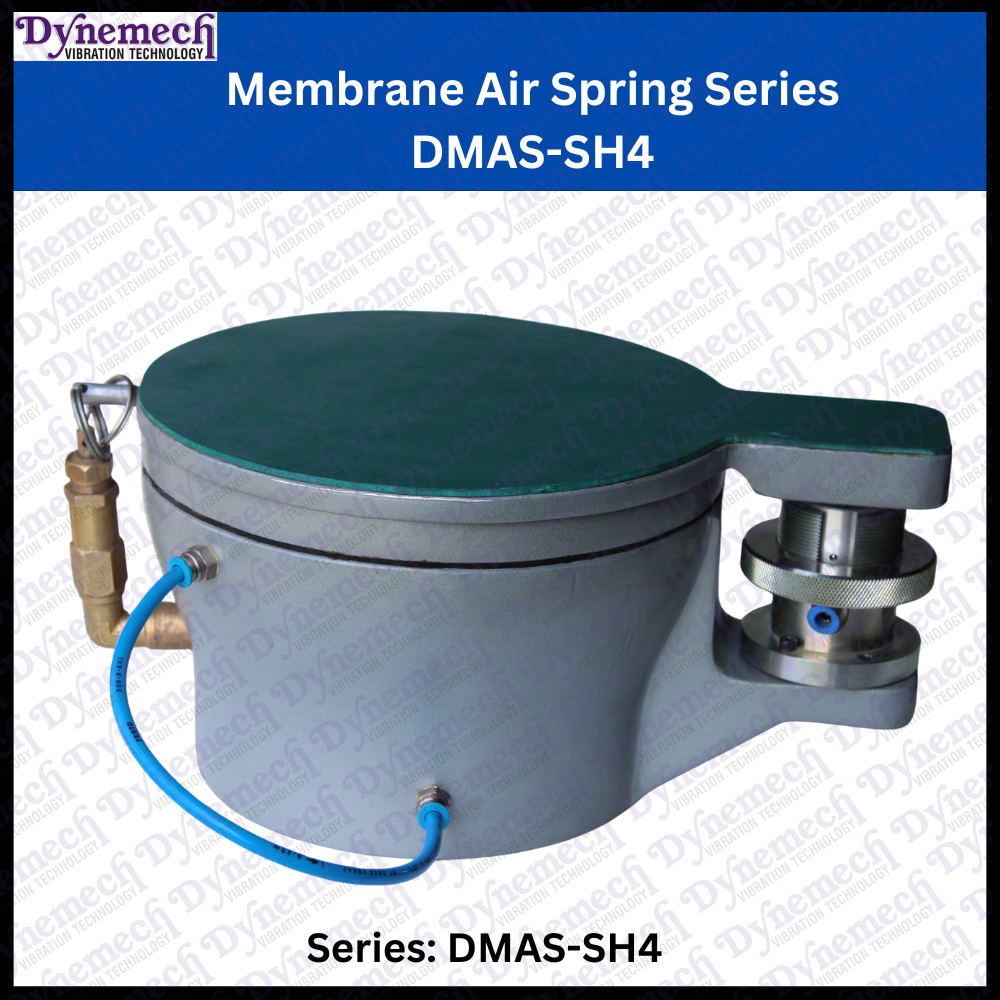

Dynemech Pneumatic Leveling Mounts with Automatic Level Control Series DMAS-SH4

Name: Dynemech Pneumatic Leveling Mounts with Automatic Level Control Series DMAS-SH4
Brand: DYNEMECH SYSTEMS PVT. LTD.
Price: 103400.0 INR
Availability: InStock

Price 103400.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Dynemech Pneumatic Leveling Mounts with Automatic Level Control Series DMAS-SH4 Specification

Material
Other

Height
102 Millimeter (mm)

Product Type
Dynemech Membrane Air Spring

Usage
Industrial

Weight
45 Kilograms (kg)

Color
Grey

Length
190 Millimeter (mm)

Application
The DMAS is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism. Available levelling accuracies are 0.015 mm and 0.15 mm depending upon the application requirements. Natural frequency of the DMAS-SH1 system is 2.5-3 Hz.

Feature
A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism.

Dynemech Pneumatic Leveling Mounts with Automatic Level Control Series DMAS-SH4 Trade Information

Minimum Order Quantity
4 Pieces

Payment Terms
Cash on Delivery (COD), Cheque, Paypal

Supply Ability
100 Pieces Per Month

Delivery Time
8 Days

Packaging Details
Wooden and Corrugated Boxes As Per Customer Requirement.

Main Export Market(s)
Western Europe, Middle East, Eastern Europe, Africa, Asia, Australia, Central America, North America, South America

Main Domestic Market
All India

Certifications
ISO, GST CERTIFICATE , MSME UDYAM Certification

About Dynemech Pneumatic Leveling Mounts with Automatic Level Control Series DMAS-SH4

Dynemech DMAS-SH4 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-SH4 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism.
