Safety-Rated Viscous Damping Systems For Presses Series RFD-RT

About Safety-Rated Viscous Damping Systems For Presses Series RFD-RT

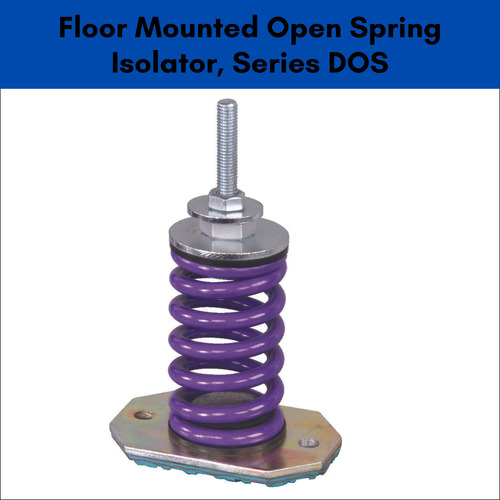

Dynemech Spring Isolator

Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years We are the only company to provide almost all types of vibration control solutions under one roof Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses hammers gen sets etc A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine Viscous Damping is an important feature of an isolation system In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to or coinciding with the resonant frequencies of the system Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers

Advantages of Spring Isolators

red_arrow_bullet Very high vibration and shock isolation

red_arrow_bullet Better Structural Safety

red_arrow_bullet Improved Health Protection of workersï reduced machine operator fatigue and provide more congenial working environment

red_arrow_bullet Installation of sensitive equipments and heavy machinery possible in the same workshop

red_arrow_bullet Shop Floor Flexibility Maintains

red_arrow_bullet Extended tool and machinery life

red_arrow_bullet No foundation is required for small and medium weight machines and reduced depth of foundation for very heavy machines

red_arrow_bullet Simple to install and reliable

The numerous benefits associated with the use of spring vibration isolators are

red_arrow_bullet A MASSIVE reduction in the vibration in the works and the surrounding neighbourhood

red_arrow_bullet Protection of machinery against external vibration

red_arrow_bullet Extends the service life of machines

red_arrow_bullet Complies with environmental constraints

red_arrow_bullet Allows easy machinery leveling

red_arrow_bullet Combats foundation subsidence

red_arrow_bullet Reduced cost foundation

red_arrow_bullet Makes buildings and machinery safe from earthquakes

red_arrow_bullet Impact noise isolation

ï

Applications

red_arrow_bullet Power Presses

red_arrow_bullet Forging Hammers

red_arrow_bullet Fans

red_arrow_bullet Blowers

red_arrow_bullet Generating Sets

red_arrow_bullet Centrifuges

red_arrow_bullet Test Beds

red_arrow_bullet Textile Machines

red_arrow_bullet Reducing Mills and Mixers

red_arrow_bullet Coal and Stone Crushers

red_arrow_bullet Refrigeration Units

red_arrow_bullet Pumps and Boilers etc

red_arrow_bullet All types of heavy industrial machinery

ï

The Springs are made in top grade wireï finished with protective coatings thus ensuring trouble free service life

ï

Selection Procedure

green_tick Determine the allup weight of the machine to be mounted including work loads

green_tick Estimate the position of its combined center of gravity in both horizontal and vertical planes allowing for work loadsï any mobile loads ie traversing work heads or tables etc

green_tick Decide where the mountings are to be positioned

green_tick Select mountings to give the required static deflection

green_tick Where especially very high levels of isolation are required for instance where the disturbing frequency is less than 12 Hz higher deflection springs may be necessary Please contact for our advise accordingly
