Shock Resistant / Anti-Vibration Table with Elastomeric Mounts

Get a Price/Quote

MOQ : 400 Pieces

Shock Resistant / Anti-Vibration Table with Elastomeric Mounts Specification

Usage
ALL INDUSTRIAL SETUPS

Type
Other

Dimension (L*W*H)
500x500x800 To 1000x8001000mm Millimeter (mm)

Size
500x500x800 To 1000x8001000mm

Height
800 TO 1000 Millimeter (mm)

Product Type
Antivibration table

Weight
Load (Kg/pc) 100 to 1600 Kilograms (kg)

Color
black

Length
500 TO 1000 Millimeter (mm)

Width
500 TO 1000 Millimeter (mm)

Material
cast iron

Application
The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations.

Warranty
1 YEAR

Shock Resistant / Anti-Vibration Table with Elastomeric Mounts Trade Information

Minimum Order Quantity
400 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
7 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden and Corrugated BOX

Main Export Market(s)
Asia, Australia, North America, Eastern Europe, Middle East, Central America, South America, Western Europe, Africa

Main Domestic Market
Uttar Pradesh, Telangana, Nagaland, Uttarakhand, Mizoram, Kerala, Gujarat, Lakshadweep, Meghalaya, Bihar, Jammu and Kashmir, Dadra and Nagar Haveli, Chhattisgarh, Haryana, Maharashtra, Pondicherry, Madhya Pradesh, West India, Daman and Diu, East India, Rajasthan, Karnataka, Goa, Odisha, North India, Central India, Andhra Pradesh, Himachal Pradesh, Assam, Andaman and Nicobar Islands, Tripura, Delhi, West Bengal, South India, Punjab, Sikkim, Chandigarh, Jharkhand, Arunachal Pradesh, Manipur, Tamil Nadu, All India

Certifications
ISO 9001:2015

About Shock Resistant / Anti-Vibration Table with Elastomeric Mounts

Shock Resistant / Anti-Vibration Table with Elastomeric Mounts

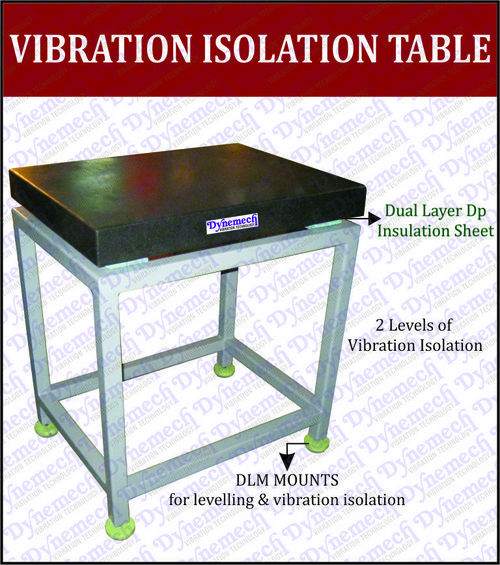

Our Anti Vibration Tables - Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-1 accuracy for very precise measuring accuracies. We can select single or dual layer insulation plate depending upon the vibrations present in the Testing Laboratory. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets.

APPLICATIONS: The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations.

With this specialized design, we obtain a very precise and highly Shock Resistant Anti-Vibration Table.

Model	Length (L) (mm)	Width (B) (mm)	Height (H) (mm)	Surface Plate Thickness (mm)	Table Loading Capacity (Kg)	Adjustment range (mm)
DIT-E/01	500	500	800	50	100 - 250	8
DIT-E/02	700	550	800 / 1000	80	200 - 450	8
DIT-E/03	900	600	1000	100	500 - 1250	12
DIT-E/04	1000	800	1000	100	800 - 1600	12
