Stud Mounts Series DS

190 INR/Number

Get a Price/Quote

Product Details:

Color Black
Product Type VIBRATION CONTROL
Usage ALL INDUSTRIAL SETUPS
Length 16mm To 48mm Millimeter (mm)
Weight Model Load capacity : 2 to1300 kg/pc Kilograms (kg)
Size 10x10mm to 150x55mm
Material Rubber, Iron, Steel, synthetic rubbers
Supply Ability : 500 Number Per Week
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 5 Number
Price 190 INR/Number

Product Specifications

Length 16mm To 48mm Millimeter (mm)
Material Rubber, Iron, Steel, synthetic rubbers
Usage ALL INDUSTRIAL SETUPS
Feature REDUCING VIBRATION
Product Type VIBRATION CONTROL
Application Dynemech Stud Mounts Series DS are highly effective and compact vibration dampers for a varity of applications like- Compressors, Pumps, ID & FD fans, Motors, Machine tools, Gensets, Air Conditioners, Measuring and Testing Equipment / Instruments, Material Handling Equipment, Laboratory etc. These mounts can be used for load applications in both compression and shear.
Function REDUCING VIBRATION
Color Black
Size 10x10mm to 150x55mm
Weight Model Load capacity : 2 to1300 kg/pc Kilograms (kg)

Trade Information

FOB Port RAI
Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 500 Number Per Week
Delivery Time 6-7 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wooden Box & Corrugated Box as per your requirement.
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India, South India, Central India, North India, East India, West India, Andaman and Nicobar Islands, Andhra Pradesh, Assam, Arunachal Pradesh, Bihar, Chhattisgarh, Chandigarh, Delhi, Dadra and Nagar Haveli, Daman and Diu, Gujarat, Goa, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Lakshadweep, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Manipur, Nagaland, Odisha, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal
Certifications ISO 9001:2015

Product Description

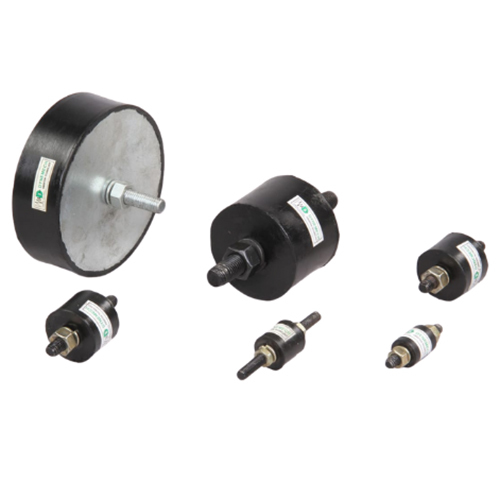

Stud Mounts Series DS

Dynemech Stud Mounts Series DS are highly effective and compact vibration dampers for a varity of applications like- Compressors, Pumps, ID & FD fans, Motors, Machine tools, Gensets, Air Conditioners, Measuring and Testing Equipment / Instruments, Material Handling Equipment, Laboratory etc. These mounts can be used for load applications in both compression and shear.

Different configurations of Anti-Vibration Pads

Model	D mm	H mm	G Thread	L mm	Load Kgs.	Natural Frequency Hz.
DS a 10-10	10	10	M4	10	2	12
DS b 10-10	10	10	M4	10	4	15
DS c 10-10	10	10	M4	10	6.5	15
DS a 15-15	15	15	M4	10	4	12
DS b 15-15	15	15	M4	10	9	12
DS c 15-15	15	15	M4	10	15	12
DS a 20-15	20	15	M6	13	9	12
DS b 20-15	20	15	M6	13	18	12
DS c 20-15	20	15	M6	13	25	12
DS a 20-25	20	25	M6	13	7	10
DS b 20-25	20	25	M6	13	16	10
DS c 20-25	20	25	M6	13	24	12
DS a 25-25	25	25	M8	20	12	12
DS b 25-25	25	25	M8	20	28	12
DS C 25-25	25	25	M8	20	39	12
DS a 25-30	25	30	M8	20	10	9
DS b 25-30	25	30	M8	20	22	9
DS C 25-30	25	30	M8	20	30	9
DS a 30-30	30	30	M8	20	17	8
DS b 30-30	30	30	M8	20	37	8
DS c 30-30	30	30	M8	20	57	9
DS a 40-30	40	30	M10	25	34	7
DS b 40-30	40	30	M10	25	70	8
DS c 40-30	40	30	M10	25	110	8
DS a 40-40	40	40	M10	25	30	7
DS b 40-40	40	40	M10	25	60	8
DS c 40-40	40	40	M10	25	95	8
DS a 50-45	50	45	M10	25	55	8
DS b 50-45	50	45	M10	25	110	8
DS c 50-45	50	45	M10	25	160	8
DS a 60-25	60	25	M10	30	85	6
DS b 60-25	60	25	M10	30	170	7
DS c 60-25	60	25	M10	30	250	7
DS a 60-45	60	45	M10	30	75	7
DS b 60-45	60	45	M10	30	150	7
DS c 60-45	60	45	M10	30	200	7
DS a 75-55	75	55	M16	30	125	6
DS b 75-55	75	55	M16	30	275	7
DS c 75-55	75	55	M16	30	400	7
DS a 100-55	100	55	M16	45	250	7
DS b 100-55	100	55	M16	45	500	7
DS c 100-55	100	55	M16	45	750	7
DS a 150-55	150	55	M16	50	450	7
DS b 150-55	150	55	M16	50	800	8
DS c 150-55	150	55	M16	50	1300	8
