Machinery Raiser Damping Blocks- Series DR

100.00 - 500.00 INR/Piece

Get a Price/Quote

Product Details:

Hardness 98%
Product Type Machinery Raiser Damping Blocks- Series DR
Material Steel
Function Easy To Use
Usage For Laboratory And Industrial Use
Color Green
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Machinery Raiser Damping Blocks- Series DR Price And Quantity

Minimum Order Quantity 100 Piece
Price Range 100.00 - 500.00 INR/Piece

Machinery Raiser Damping Blocks- Series DR Product Specifications

Hardness 98%
Material Steel
Function Easy To Use
Usage For Laboratory And Industrial Use
Color Green
Product Type Machinery Raiser Damping Blocks- Series DR

Machinery Raiser Damping Blocks- Series DR Trade Information

Payment Terms Telegraphic Transfer (T/T) Cheque
Supply Ability 100 Piece Per Day
Delivery Time 2-3 Days
Main Export Market(s) Australia North America Eastern Europe Middle East South America Western Europe Asia Central America Africa
Main Domestic Market All India

Product Description

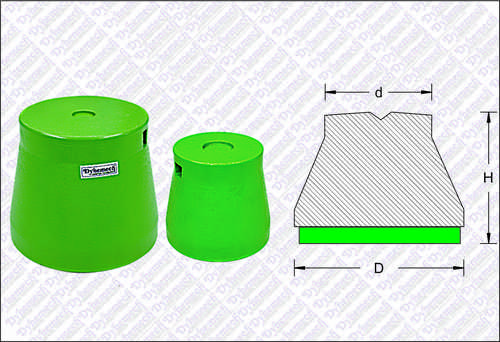

Machinery Raiser Damping Blocks- Series DR

DYNEMECH Series DR , are suitable for machines having tapped hole in the base.The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.

Technical Specification

Model	Load Kg/pc	Model	Load kg/pc	Model	Load kg/pc	Model	Load Kg/pc	Model	Load Kg/pc	Dia. (D) mm	H u/m	H p/s1	H s2	d mm
DR1-u	350	DR1-m	450	DR1-p	175	DR1-s2	300	DR1-s1	200	109	150	155	160	87
DR2-u	600	DR2-m	800	DR2-p	300	DR2-s2	550	DR2-s1	375	150	150	155	160	108
DR3-u	900	DR3-m	1150	DR3-p	500	DR3-s2	850	DR3-s1	575	170	150	155	160	136
DR4-u	1400	DR4-m	1750	DR4-p	700	DR4-s2	1250	DR4-s1	800	210	150	155	160	161
DR5-u	1900	DR5-m	2400	DR5-p	950	DR5-s2	1700	DR5-s1	1100	240	150	155	160	185
DR6-u	2500	DR6-m	3200	DR6-p	1250	DR6-s2	2200	DR6-s1	1500	270	150	155	160	215
