Compac Machinery Mounts Series DH Dynemech compac machinery mounts uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130 Kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5g) with resilient stop,it is ideal for mobile or marine use. Domed shape cover to protect against oil contamination. Light weight and compact. Ideal for Diesel engines, Compressors, Cooling Towers, Pumps, Industrial generators, Marine generators, ID, FD Fans etc. Model D A H K d G Weight(Kg.) M.Max (kg.) DH 1 63 76 35 93.5 8.5 M12 0.22 130 DH 2 63 76 35 93.5 8.5 M12 0.22 105 DH 3 63 76 35 93.5 8.5 M12 0.22 70

TPM Series Mounts are designed for industrial machines that require the machines to be placed at a height of 100mm / 150mm for proper cleaning and repairing under the machine as per  guidelines. Series DTP are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground.

Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.

Model	Load (Kg/pc)	Length (L) (mm)	Width (B) (mm)	Height (H) at mean position (mm)	d (mm)	e (mm)	Bore size (mm)	Adjustment range (mm)
DTP1-u	1100	115	115	100 / 150	50	24	22	8
DTP2-u	1800	150	150	100 / 150	60	23	22	10
DTP3-u	3200	200	200	100 / 150	75	27	28	12
DTP4-u	4000	200	250	100 / 150	95	27	28	18
DTP5-u	6400	250	320	100 / 150	125	55	28	18
DTP6-u	9600	300	400	100 / 150	148	50	30	20
DTP1-m	1400	115	115	100 / 150	50	24	22	8
DTP2-m	2200	150	150	100 / 150	60	23	22	10
DTP3-m	4000	200	200	100 / 150	75	27	28	12
DTP4-m	5000	200	250	100 / 150	95	27	28	18
DTP5-m	8000	250	320	100 / 150	125	55	28	18
DTP6-m	12000	300	400	100 / 150	148	50	30	20
DTP1-i	1800	115	115	100 / 150	50	24	22	8
DTP2-i	2900	150	150	100 / 150	60	23	22	10
DTP3-i	5200	200	200	100 / 150	75	27	28	12
DTP4-i	6500	200	250	100 / 150	95	27	28	18
DTP5-i	10000	250	320	100 / 150	125	55	28	18
DTP6-i	15000	300	400	100 / 150	148	50	30	20
DTP1-s2	950	115	115	100 / 150	50	24	22	8
DTP2-s2	1600	150	150	100 / 150	60	23	22	10
DTP3-s2	2800	200	200	100 / 150	75	27	28	12
DTP4-s2	3500	200	250	100 / 150	95	27	28	18
DTP5-s2	5500	250	320	100 / 150	125	55	28	18
DTP6-s2	8500	300	400	100 / 150	148	50	30	20

Dynemech Mac Level Series DMLDynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.ModelMax. Load (kg)D mmH mmd mmLevelling Adjust. mmNatural Frequiency at Max. Load (Hz)BoltDML1175504032107M10DML 2500804645127M12DML 312001205260127M16DML 420001605690158M16DML 5400020065120158M20

Dynemech Sandwich Mounts Series DMS

The Sandwich mounts comprise of one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high cpmpressive loads. They are very slim, having large supporting surface area, stackable mounts. The suspended equipment is free to move in all directions. High ratio of axial stiffness to radial stiffness. Very high axial loads.

Model	Max. Load (kg)	LXB mm	H mm	I mm	Natural Frequiency (Hz)	Bolt
DMS1-A	40	85 x 40	36	25	6	M8
DMS1-B	50	85 x 40	36	25	6	M8
DMS1-C	75	85 x 40	36	25	6.5	M8
DMS1-D	120	85 x 40	36	25	6.5	M8
DMS1-E	150	85 x 40	36	25	7.0	M8
DMS2-A	125	165 x 55	43	-	6.5	-
DMS2-B	250	165 x 55	43	-	6.5	-
DMS2-C	425	165 x 55	43	-	7.0	-
DMS2-D	550	165 x 55	43	-	7.0	-
DMS2-E	800	165 x 55	43	-	7.0	-

Series DR

• DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines.
• These blocks offer both leveling and vibration damping besides raising height of the machine for proper cleaning and repairing under it.
• Raiser Damping Blocks are assembled with insulation plates for vibration reduction.
• Ideal for CNC Turning/ Machining Centers, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation.
• Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices.
• Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation.
• DYNEMECH Series DR, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount.
• Dimple size is provided as per the bolt diameter in the machine base.

Application

For machines to be installd at a height of 100mm or 150mm to meet requirement of TPM for proper cleaning under machines.

Model	Load Capacity Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)
DR1-u	350	100/150
DR2-u	600	100/150
DR3-u	900	100/150
DR4-u	1400	100/150
DR5-u	1900	100/150
DR6-u	2500	100/150

Dynemech Texl Foot Machine Mounts  Series  DTXL Low cost solution for Shock Absorption and Vibration Control. Rugged CI body mount provide option for low height machinery installation option. Simple, ready to install configuration with top cup and bottom base plate bolting options. Provides stability, smoother operation and reduced maintenance in machinery. High efficiency, stable fixed support, long service life of mounts ensures greater productivity of machinery. .   Texl Foot Machine Mounts Series DTXL Dimensional Drawing - Series DTXL Model A (mm) H (mm) G (mm) d (mm) F (mm) C (mm) DTXL 1 108 40 M12 12 175 150





Applications :

Applications: Gensets, Compressors, Pumps, Blowers, Fans and Motor Units, Centrifuges, Cooling Towers, Plastic and Rubber Processing Machinery, Construction Equipments, Agricultural Instruments, Textile Machines, Food, Beverage and Pharmaceutical Industry , Packaging equipment, Granulators, Conveyors, General Industrial Machinery





Series DRC

• DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines.
• These blocks offer both leveling and vibration damping besides raising height of the machine for proper cleaning and repairing under it.
• Raiser Damping Blocks are assembled with insulation plates for vibration reduction.
• Ideal for CNC Turning/ Machining Centers, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation.
• Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices.
• Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation.
• Series DRC are suitable for machines having plain hole in the base.
• Leveling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150 &100 mm height.

Application

For machines to be installd at a height of 100mm or 150mm to meet requirement of TPM for proper cleaning under machines.

Model	Load Capacity Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)
DRC1-u	350	100/150
DRC2-u	600	100/150
DRC3-u	900	100/150
DRC4-u	1400	100/150
DRC5-u	1900	100/150
DRC6-u	2500	100/150

Dynemech Machine Base Mounts  Series  SL Dynemech Machine Base Mounts Series SL is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.   Dynemech Machine Base Mounts Series SLS, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance.   Machine Base Mounts Series SL Dimensional Drawing - Series SL

Advantages of Machine Base Anti Vibration Mounts :

1. Levelled, stable base for machinery or equipment
2. Protection from vibration transmission
3. Cost effective solution for uneven machine base, weak uneven floors.
4. Rugged load bearing casting.
6. Stops structure borne noise and machines from walking
7. Effective machinery isolation and leveling even in low installation height.
8. Bolting mechanism for point load leveling and fastening the equipment/machinery to the mount.
9.Varitey of thread lengths and foot sizes available
10. Bolt down version also available, Series SLT



Applications :

CNCs, Vertical Machining Centers, Turning Centers, Milling Machines, Lathes, Grinding Machines,  Injection Molding Machines, Notching Machines, Transformers, Pumping Equipment, Compressors, and other industrial applications.



Dynemech Jackup Mounts Series DJMDynemech provides isolation solutions for various machines and mounting conditions. Dynemech Jackup Mounts provide effective vibration isolation. Series DJM Jackup Mounts also provide for high machine leveling capabilities. The exchangeable sockets below provide for many designs as per customers requirements. Series DJM leveling elements provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup Mounts. Series DJM adjustable levellers are ideal for passive vibration isolation.Addressing a multitude of machine leveling problems, Dynemech has designed and developed Machine Jackup Mounts , Series DJM. Series DJM, adjustable levellers or Leveling Elements provide levelled, stable machinery base to mitigate vibration transmission and compensate for uneven floors. Simple , cost effective solutions for quick machinery installation. Cast fitting and hard damping elastomer provide horizontal stability and anti slip - high friction grip. Resistant to most industrial oils, coolants and chemicals. Precise leveling possible.Jackup Leveling Mounts Series DJMDimensional Drawing - Series DJMInterchangeable Leveling SocketModelLoad Capacity(kg/pc)Height (H) (mm)Dia (D) (mm)G (mm)HEX (h)(mm)DJM-08504990M20X2.5(Length 38mm)46DJM-1150049120M20X2.5(Length 38mm)46DJM-2250049160M20X2.5(Length 38mm)62Note: Please mention type of socket required at the time of ordering.Applications : Machine Tools, Textile Machines, Printing and Packaging Machinery, Graphics Machines, Planners, Food, beverage and pharmaceutical equipment, Conveyors , Power Packs, Test stands, Drive train applications, Measuring Tables and other industrial applications.

Dynemech Flexifoot Series DGF Dynemech Flexi Foot Mounts Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provide in the base of the mount to prevent machine walking. These mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces. Applications: Generators, Blowers, Pumps, ID & FD Fans, Cooling Towers, etc. Model Max. Load (kg) L mm B mm H mm Natural Frequiency at Max. Load (Hz) Bolt DGF1-A 75 132 125 84 6.0 M12 DGF1-B 100 132 125 84 6.0 M12 DGF1-C 150 132 125 84 6.5 M12 DGF1-D 225 132 125 84 6.5 M12 DGF1-E 300 132 125 84 7.0 M12 DGF2-A 250 230 200 100 6.5 M16 DGF2-B 500 230 200 100 6.5 M16 DGF2-C 850 230 200 100 7.0 M16 DGF2-D 1100 230 200 100 7.0 M16 DGF2-E 1575 230 200 100 7.0 M16

In order to cater to the demands of our valuable clients, we are engaged in manufacturing and supplying a qualitative range of Compac Machinery Mount. This range of mount is properly manufactured under the firm guidance of our qualified professionals by making use of optimum quality materials that are sourced from the trusted dealers of the market. This mount is suitable to be used in different machines for controlling vibrations. We offer this Compac Machinery Mount at reasonable prices.

Features of Compac Machinery Mount :



• Strong structure
• Easy installation
• Long life



Further Details:

Compac Machinery Mount

Dynemech Compac Machinery Mounts uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130 Kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5g) with resilient stop, it is ideal for mobile or marine use. Domed shape cover to protect against oil contamination. Light weight and compact. Ideal for Diesel engines, Compressors Cooling Towers, Pumps, Industrial generators, Marine generators, ID, FD Fans etc.

Model	D	A	H	K	d	G	Weight (Kg)	M-Max (Kg)
DH1	63	76	35	93.5	8.5	M12	0.22	130
DH2	63	76	35	93.5	8.5	M12	0.22	105
DH3	63	76	35	93.5	8.5	M12	0.22	70

Screw Support Mounts - Series DLK

Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine leveling.

The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop. These vibration insulating machine pads will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates.

Technical Specifications

Industrisal Machinery FeetDynemech DLM/DLMS Series Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. The flexible levelling screw accomodates uneven/sloped surfaces upto 5 degree. DLMS series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Model Load Kg/pc Model Load Kg/pc Model Load Kg/pc Model Load Kg/pc Dia (D) mm H u H P H s2 H a2 Bolt Size DLM1 - u 150 DLM1 - a2 190 DLM1 - p 75 DLM1 - s2 125 58 21 26 31 20 M16 x 100mm DLM2 - u 350 DLM2 - a2 450 DLM2 - p 175 DLM2 - s2 300 85 24 29 34 23 M16 x 100mm DLM3 - u 600 DLM3 - a2 800 DLM3 - p 300 DLM3 - s2 550 110 28 33 38 27 M16 x 150mm DLM4 - u 900 DLM4 - a2 1150 DLM4 - p 500 DLM4 - s2 850 135 30 35 40 28 M16 x 150mm DLM5 - u 1400 DLM5 - a2 1750 DLM5 - p 700 DLM5 - s2 1250 165 30 35 40 28 M16 x 150mm DLM6 - u 1900 DLM6 - a2 2400 DLM6 - p 950 DLM6 - s2 1700 185 30 35 40 28 M16 x 150mm DLM7 - u 2500 DLM7 - a2 3200 DLM7 - p 1250 DLM7 - s2 2200 215 35 40 45 33 M16 x 150mm

Being a client centric organization, we are engaged in manufacturing and supplying a perfect range of Rubber Round Mountings. These mountings are accurately manufactured by our experienced workforce by making use of the premium quality materials that are sourced from authorized vendors of the industry. Offered mountings are widely used in used in different machines for absorbing vibrations. This range of Rubber Round Mountings is offered by us in plethora of specifications as to suit the clients requirements. Features: Easy to fit Anti abrasive Strong structure Further Details: Rubber Round MountingsDynemesh Stud Mounts, Series DS are highly effective and compact vibration dampers for a variety of applications like- Compressors, Pumps, ID & FD fans, Motors, Machine tools, Gensets, Air Conditioners, Measuring and Testing Equipments/Instruments, Material Handling Equipments, Laboratory Equipments etc. These mounts can be used for load applications in both compression and shear.Datasheet: Model Dmm Hmm GThread Lmm LoadKgs. NaturalFrequency DS a 10-10DS b 10-10DS c 10-10 101010 101010 M4M4M4 131313 246.5 121515 DS a 15-15DS b 15-15DS c 15-15 151515 151515 M4M4M4 131313 4915 121212 DS a 20-15DS b 20-15DS c 20-15 202020 151515 M6M6M6 131313 91825 121212 DS a 20-25DS b 20-25DS c 20-25 202020 252525 M6M6M6 131313 71624 101012 DS a 25-25DS b 25-25DS c 25-25 252525 252525 M8M8M8 333333 122839 121212 DS a 25-30DS b 25-30DS c 25-30 252525 303030 M8M8M8 333333 102230 999 DS a 30-30DS b 30-30DS c 30-30 303030 303030 M8M8M8 333333 173757 889 DS a 40-30DS b 40-30DS c 40-30 404040 303030 M10M10M10 383838 3470110 788 DS a 40-40DS b 40-40DS c 40-40 404040 404040 M10M10M10 383838 306095 788 DS a 50-45DS b 50-45DS c 50-45 505050 454545 M10M10M10 383838 55110160 888 DS a 60-25DS b 60-25DS c 60-25 606060 252525 M10M10M10 383838 85170250 677 DS a 60-45DS b 60-45DS c 60-45 606060 454545 M10M10M10 303030 75150200 777 DS a 75-55DS b 75-55DS c 75-55 757575 555555 M16M16M16 484848 125275400 677 DS a 100-55DS b 100-55DS c 100-55 100100100 555555 M16M16M16 484848 250500750 777 DS a 150-55DS b 150-55DS c 150-55 150150150 555555 M16M16M16 484848 4508001300 788

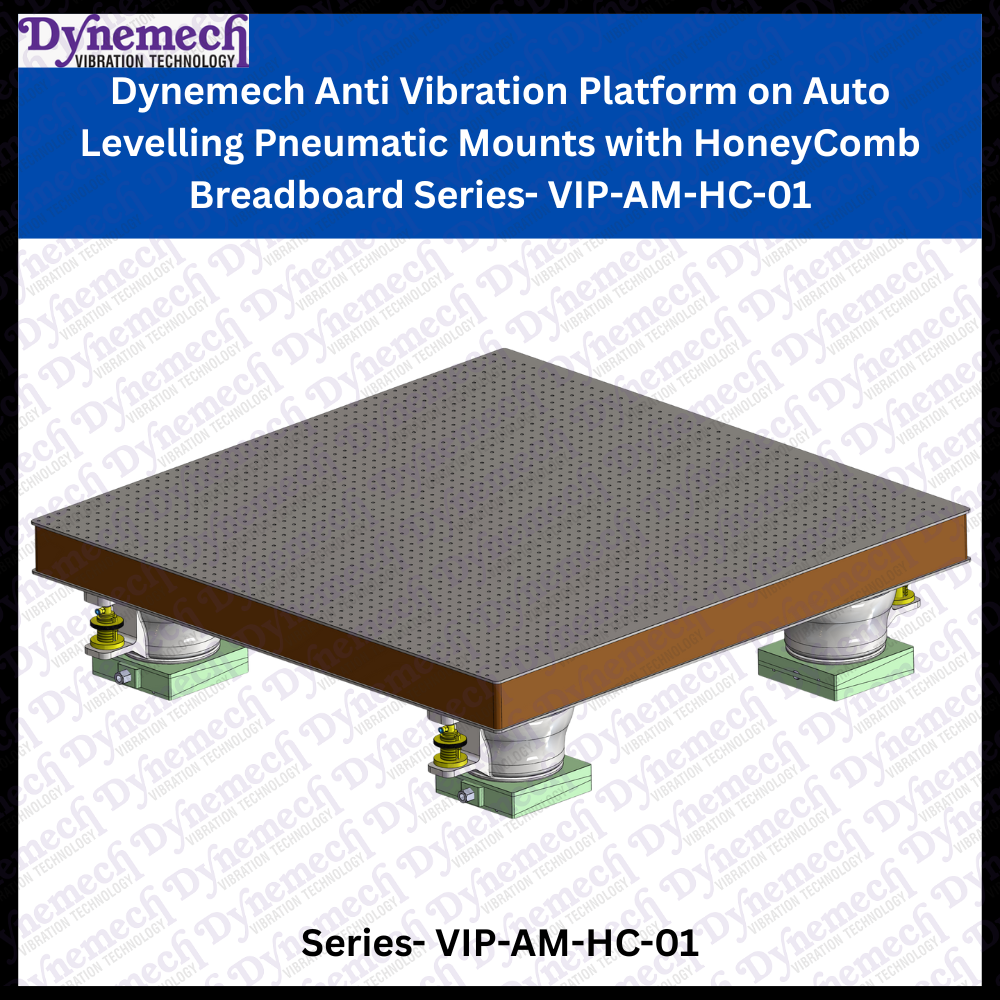

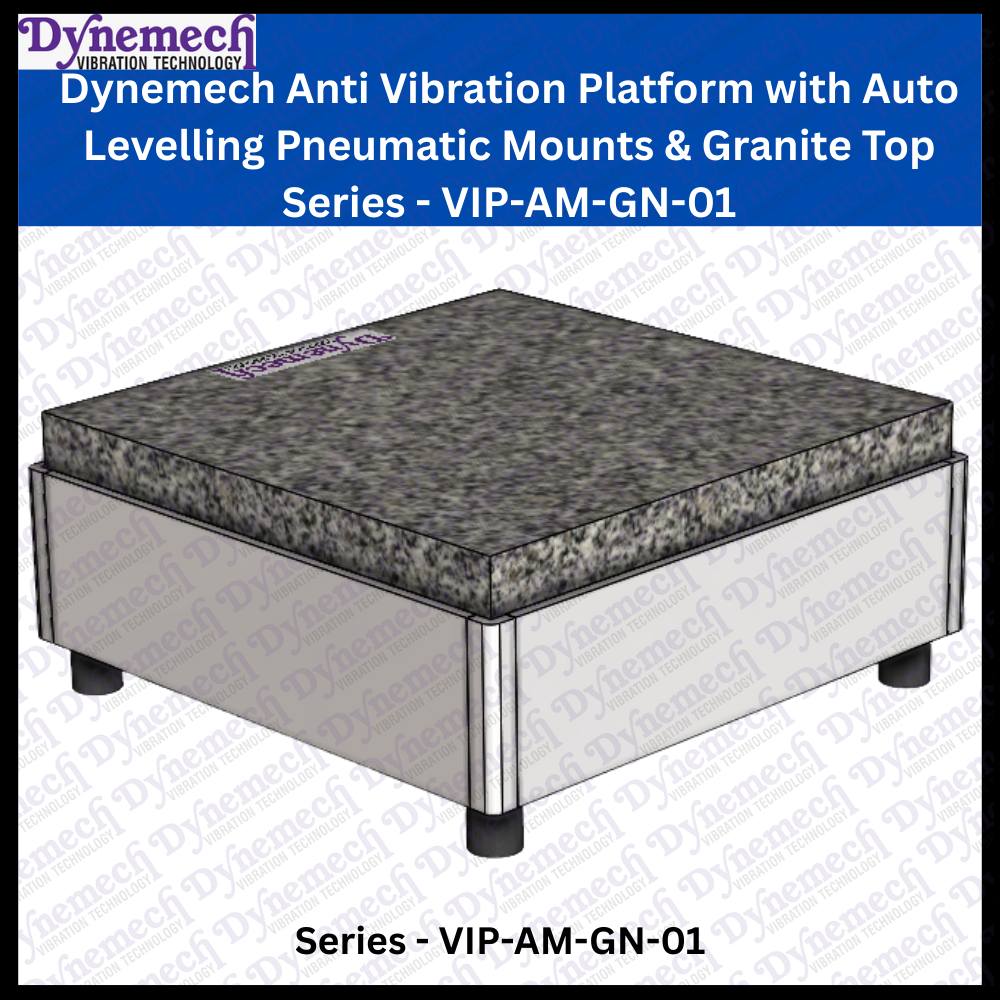

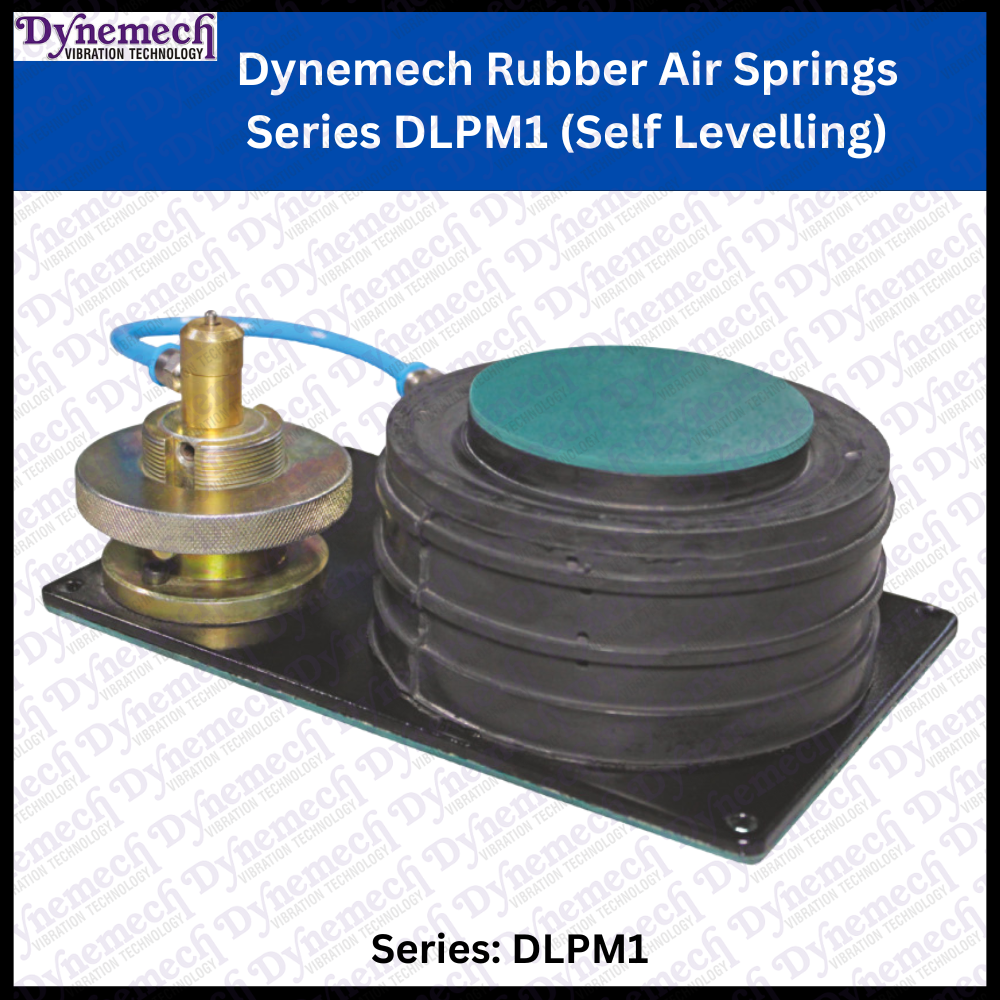

Dynemech Anti-Vibration Platform VIP-AM-WA has natural Frequency in the range of 1.5-2Hz along with self - levelling Feature , Available self -levelling Feature . Avalable Self -Levelling is +0.01 mmvariants with minnium setting time.Membrane air springs damps most of the incoming vibrations above 3 Hz.
