Wedge Mounts - Series DF

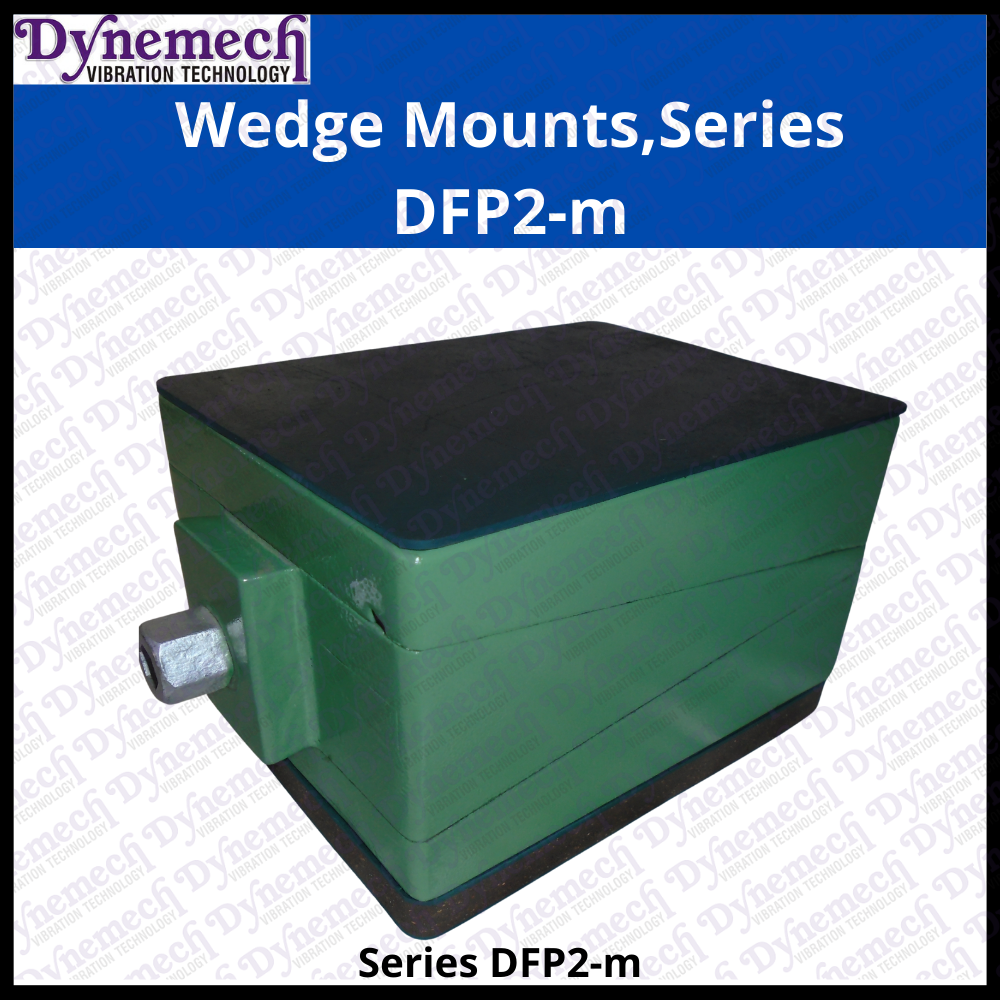

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.


Anti-Vibration Mounts with precision levelling Anti-Vibration Pads with precision levelling for machinery



Model Load (Kg/pc) Length (L) (mm) Width (B) (mm) Height at mean position (H) (mm) Adjustment range (mm) Applications
DF1-u 400 105 55 60 8 Top anti skid plate Da2 & bottom Insulation plate Du.

Applications: Tool Room Machines, Plastic injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
DF2-u 900 150 75 63 10
DF3-u 1500 200 100 69 10
DF4-u 3200 200 200 71 12
DF5-u 4000 200 250 93 18
DF6-u 6400 250 320 98 18
DF7-u 9600 300 400 98 20
DF1-m 500 105 55 54 8 Top anti skid plate Da1 & bottom insulation plates Dm.

Applications: Lathe Machines, Machining Centers, Milling Machines, Precision Grinding Machines, Drilling Machine, Turning Centers, Transfer Lines etc.
DF2-m 1200 150 75 57 10
DF3-m 2000 200 100 63 10
DF4-m 4000 200 200 65 12
DF5-m 5000 200 250 87 18
DF6-m 8000 250 320 92 18
DF7-m 12000 300 400 92 20
DF1-s2 350 105 55 64 8 Top anti skid plate Da1 & bottom Insulation plates Ds2

Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
DF2-s2 800 150 75 67 10
DF3-s2 1400 200 100 73 10
DF4-s2 2800 200 200 75 12
DF5-s2 3500 200 250 97 18
DF6-s2 5500 250 320 102 18
DF7-s2 8500 300 400 102 20
DF1-i 600 105 55 70 8 Top anti skid Da2 & bottom insulation plate Di

Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines, For Machine with high vertical impact.
DF2-i 1500 150 75 73 10
DF3-i 2500 200 100 79 10
DF4-i 5200 200 200 81 12
DF5-i 6500 200 250 103 18
DF6-i 10000 250 320 108 18
DF7-i 15000 300 400 108 20
DF1-p 180 105 55 59 8 Top anti skid Da1 & bottom insulation plate Dp.

Applications: Measuring & Testing Machines, Surface Plates, Hardness Testers, Microscopes, EDM Machine, Profile Projectors etc.
DF2-p 400 150 75 62 10
DF3-p 725 200 100 68 10
DF4-p 1450 200 200 70 12
DF5-p 1800 200 250 92 18
DF6-p 2900 250 320 97 18
DF7-p 4400 300 400 97 20
DF1 1200 105 55 45 8 No Vibration Isolation.
Only 3-piece Precision Levelling Wedge Mount.

Precision levelling wedge
DF2 3000 150 75 48 10
DF3 5000 200 100 54 10
DF4 10400 200 200 56 12
DF5 13000 200 250 78 18
DF6 20000 250 320 83 18
DF7 30000 300 400 83 20
