Wedge Mounts

Series DF

Dynemech Wedge mounts series DF

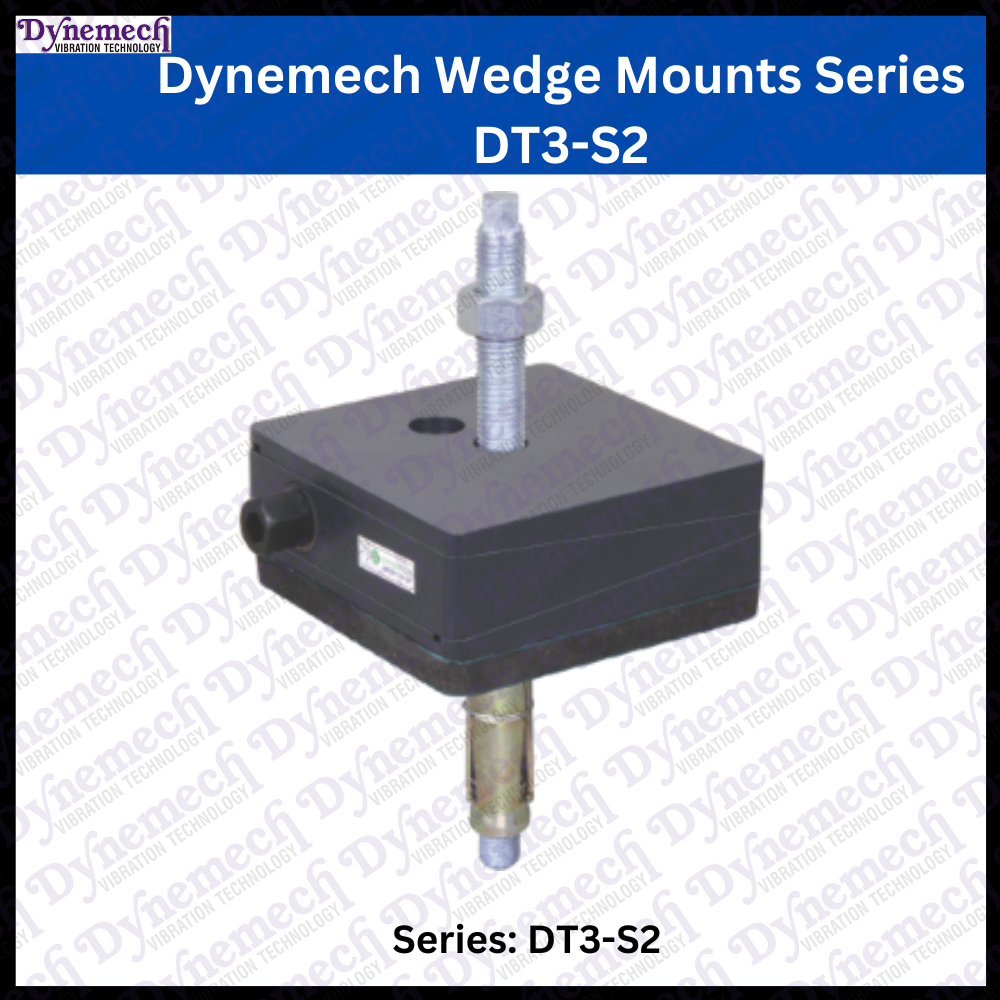

Dynemech Wedge Mounts Series DT3s2

Size:200x200x75mm Anchor Set : As Per Customer Requirement Load Capacity:2800 Kg/pc Weight:15.8 Kgs Material:Rubber & Cust Iron. Colour:Dark Grey, Green Usage:Industrial

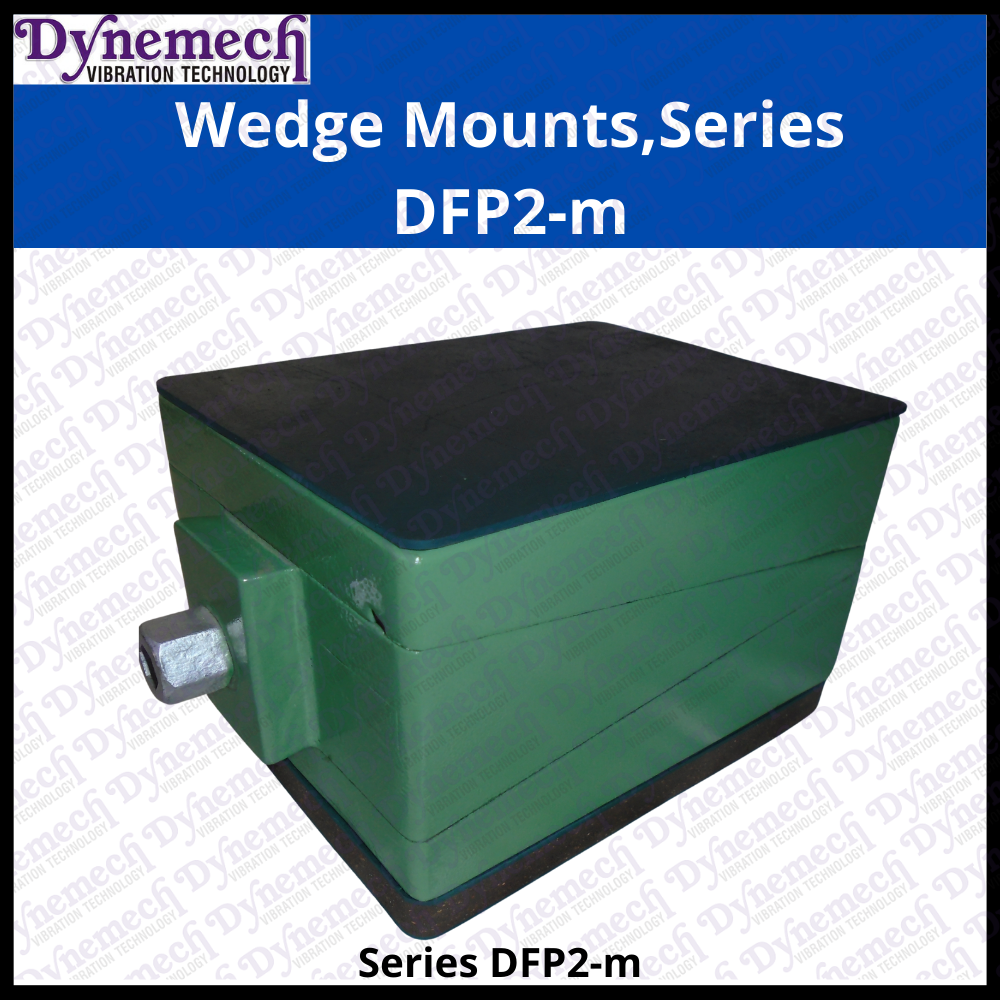

Dynemech Wedge Mounts Series DFP2-m

Size:150x75x100/150mm Bolt Size: N/A Load Capacity:1200 Kgs/Pc Weight :9 Kgs/Pc Material:Rubber & Cust Iron Colour:Green Usage: Industrial

Dynemech Wedge Mounts - Series DF1-u

Size: 105x55x60mm Bolt Size: N/A Load Capacity: 400Kg/pc Weight: 1.5 mm Material: Rubber & Cust Iron Colour: Green Usage: Industrial

Dynemech Wedge Mounts Series DB1i

Size: 115x115x69mm Bolt Size: M16 X 2.0 X 150mmLong Load Capacity:1800 Kg/pc Weight:5.9 Kgs Material:Rubber & Cust Iron Colour:Dark Grey, Green Usage: Industrial

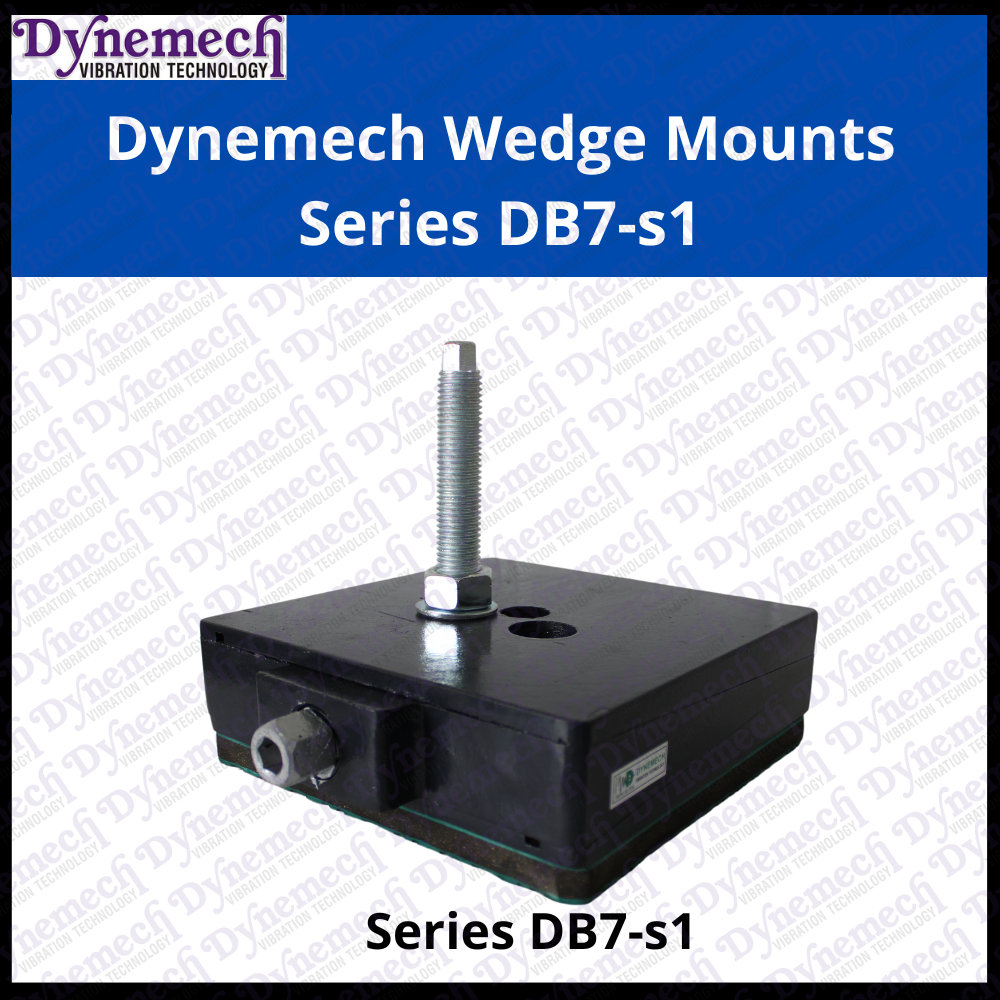

Dynemech Wedge Mounts Series DB7s1

Size: 400x500x100mm Bolt Size:M24 x 3.0 x 200mm Long Load Capacity: 9500Kg/pc Weight:120 Kgs Material:Rubber & Cust Iron Colour:Green Usage: Industrial

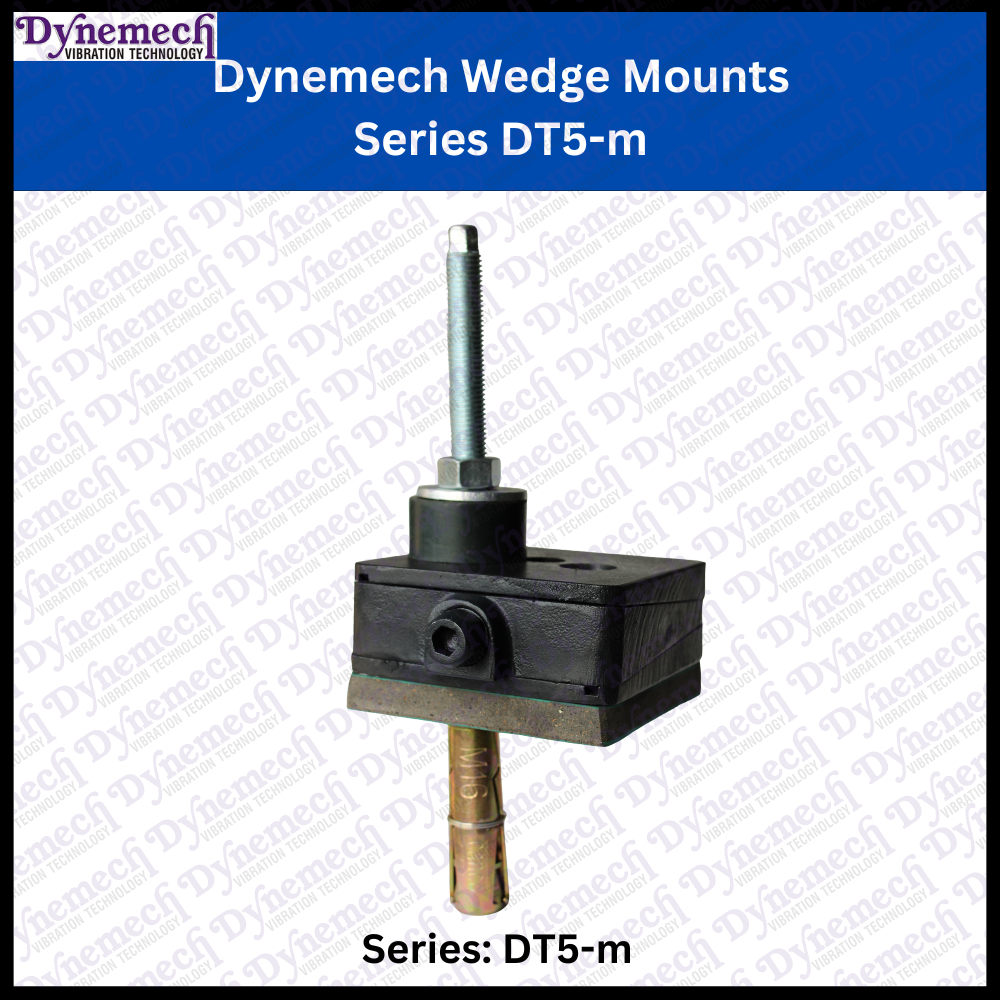

Dynemech Wedge Mounts Series DT5m

Size:250x320x90mm Anchor Set : As Per Customer Requirement. Load Capacity:8000Kg/pc Weight:36.5 Kgs/pc Material:Rubber & Cust Iron Colour:Dark Grey, Green Usage:Industrial

Dynemech Wedge Mounts Series DF8p2

Size: 400x500x102mm Bolt Size: N/A Load Capacity: 7500Kg/pc Weight:120 Kgs Material:Rubber & Cust Iron Colour:Green Usage: Industrial

Wedge Mounts - Series DF1-u

Dynemech wedge mounts DF are designed for industrial machine tools that require precision leveling. By keeping track with current market developments, we are offering Precision Wedge Mounts. This has ability pass on load of the machine to the floor with very precise leveling; our offered wedge mounts are manufactured utilizing better-quality components. In addition to this, our professionals have employed highly competent technology in order to provide a perfect wedge mounts to our customers. We are giving these wedge mounts in several specifications and can be availed within the given time period at competitive prices.

WEDGE MOUNT, SERIES DBPH

Dynemech Wedge Mounts, Series DBPH (Wedge Mounts-Bolt On-High Leveling-Height-150mm)

Wedge Mounts, Series DBO

Dynemech Wedge Mounts, Series DBO (Wedge Mounts- Bolt On-Centered Hole) are designed for highly dynamic and precision industrial machinery which requires bolting to the isolator.

WEDGE MOUNTS, SERIES :DTPH

Dyne mech DTPH Series mounts are designed for machines which require very high height adjustment and precision levelling. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dyne mech also provides tailor made solutions besides providing quick installation service.

Wedge Mounts, Series DFSP

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.

Wedge Mounts Series DBO

Dynemech Wedge Mounts, Series DB (Wedge Mounts- Bolt On) are designed for highly dynamic and precision industrial machinery that require precision levelling, vibration absorption and fixed connection between the isolator and the machine base. This finds application in machines that need to be firmly mounted with the isolator or machines with high axial thrust like Punch Presses, Stamping Machinery, Machine Tools, Plastic Injection Moulding and Die Cast Machinery, Extrusion Machinery , Cylindrical/ centreless Grinding, Shearing Machines, CNC turning Centres, CNC -VMC etc. DB Series Dynemech Mounts provide 2 tapped holes on the bottom plate of the wedge and 2 through holes in the top wedge plate. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes which then fixes securely with the bottom wedge plate. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine. Levelling is done by rotating the side screw clockwise or anticlockwise which moves the centre wedge between the top and bottom wedge plates to provide levelling. Different types and specifications of vibration insulation plates are assembled to achieve required vibration isolation. Benefits: Increased Isolator Location Flexibility as no need to grout the machine Vibration Isolation Elastomeric Dynemech Insulations Plates assembled with DB series, control vibration transmission and prevent machine walking due to high coefficient of friction. Cost Effective precise and flexible machinery installation.

Wedge Mounts - Series DTO (Centred Hole- Bolt Through)

Dynemech Wedge Mounts, Series DTO are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground for higher machine stability. A large centered hole instead of two eccentric hole , allows for heavy duty grouting or fixing of machine to the ground for added strength. The adjustable bolt has been retained at an offset position to allow for center wedge movement and precise levelling and height adjustment.

Wedge Mounts, Series DBSP

Spherical Positioners are designed to transmit the load of the machine to the ground wedge mounts at 90 degree despite the ange difference between machine base and foundaton . The Pressure on the insulation plates remain even.Thus Better aligment is possible .

WEDGE MOUNTS, SERIES DFPH

Dynemech DFH Series mounts are sturdy in construction, have a large levelling range and are installed as free standing. They are designed for very heavy and long bedded machines or other material handling equipment in industries such as but not limited to general fabrication /manufacturing, metalworking, printing, plastics, and power generation. High levelling adjustment of Series DFH , avoids the need of extra shims for installations on steep slope surfaces. Respective insulation plates are assembled to meet various applications and achieve vibration damping along with skid-control. The machine must be aligned, in x and y directions and then placed on DFH Series wedge mounts for levelling in z direction. The levelling screw used to do alignment in -ve z-direction or +ve z direction.

WEDGE MOUNTS, SERIES DBH

Dynemech Wedge Mounts Series DBH is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.

WEDGE MOUNTS, SERIES DFH

Dynemech DFH Series mounts are sturdy in construction, have a large levelling range and are installed as free standing. They are designed for very heavy and long bedded machines or other material handling equipment in industries such as but not limited to general fabrication /manufacturing, metalworking, printing, plastics, and power generation. High levelling adjustment of Series DFH , avoids the need of extra shims for installations on steep slope surfaces. Respective insulation plates are assembled to meet various applications and achieve vibration damping along with skid-control. The machine must be aligned, in x and y directions and then placed on DFH Series wedge mounts for levelling in z direction. The levelling screw used to do alignment in -ve z-direction or +ve z direction.

Wedge Mounts Series DTPH

Dynemech DTH Series mounts are designed for machines which require very high height adjustment and precision levelling. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech also provides tailor made solutions besides providing quick installation service.

WEDGE MOUNTS, SERIES DTH

DTH Series mounts are designed for machines which require very high height adjustment and precision levelling.

Wedge Mounts, Series DTSP

By keeping track with current market developments, we are offering Anti Vibration Wedge Mounts. This has ability pass on load of the machine to the floor with very precise leveling; our offered wedge mounts are manufactured utilizing better-quality components. In addition to this, our professionals have employed highly competent technology in order to provide a perfect wedge mounts to our customers. We are giving these wedge mounts in several specifications and can be availed within the given time period at competitive prices.

Wedge Mounts ,Series DBP (Bolt On)

Series DB Wedge Mounts is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.

Wedge Mounts, Series DTP (BOLT THRU)

TPM Series Mounts have a height of 100mm/150mm (as per client requirment )at mean positin to help proper cleaning and reparing under machine as per TPM guidelines for machine installation by IMTMA

Wedge Mounts Series DFP

TPM Series Mounts are designed for industrial machines that require the machines to be placed at a height of 100mm / 150mm for proper cleaning and repairing under the machine as per IMTMA guidelines.

Wedge Mounts, Series DB (BOLT ON)

Dynemech Wedge Mounts, Series DB (Wedge Mounts- Bolt On) are designed for highly dynamic and precision industrial machinery that require precision levelling, vibration absorption and fixed connection between the isolator and the machine base. This finds application in machines that need to be firmly mounted with the isolator or machines with high axial thrust like Punch Presses, Stamping Machinery, Machine Tools, Plastic Injection Moulding and Die Cast Machinery, Extrusion Machinery , Cylindrical/ centreless Grinding, Shearing Machines, CNC turning Centres, CNC -VMC etc. DB Series Dynemech Mounts provide 2 tapped holes on the bottom plate of the wedge and 2 through holes in the top wedge plate. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes which then fixes securely with the bottom wedge plate. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine. Levelling is done by rotating the side screw clockwise or anticlockwise which moves the centre wedge between the top and bottom wedge plates to provide levelling. Different types and specifications of vibration insulation plates are assembled to achieve required vibration isolation. Benefits: Increased Isolator Location Flexibility as no need to grout the machine Vibration Isolation Elastomeric Dynemech Insulations Plates assembled with DB series, control vibration transmission and prevent machine walking due to high coefficient of friction. Cost Effective precise and flexible machinery installation.

WEDGE MOUNTS, SERIES DT (BOLT THU)

Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion. DT Series anti vibration mounts are also preferred in machines which must be anchored to the ground due to low bed rigidity or due to large horizontal or vertical forces. DT series Mounts permanently anchor the machine to the foundation, offering highly effective vibration transmission control and impact mitigation. The selection of the DT mounts depends on the static and dynamic loading of the machines. Anchor bolts are used to fix the machine to the foundation, which can be used on any one of the two ecentric through holes supplied. Anti-vibration insulating discs are required with DT Series mounts to prevent vibration travel through the bolts. While installing the machine, the anchoring bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine to ensure maximum stability.

Wedge Mounts , Series DF

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.

Wedge Mounts Series - TPM series DTP

TPM Series Mounts have a height of 100mm/150mm (as per client requirment )at mean positin to help proper cleaning and reparing under machine as per TPM guidelines for machine installation by IMTMA

Wedge Mounts - Series DTO (Centred Hole- Bolt Through)

Wedge Mounts Series DBP

Series DBP have a height of 100/150mm at mean position to help proper cleaning and repairing under the machine, under TPM (Total Productive Maintenance) guidelines. Series DBP, find application in all industrial machinery especially, automobile industry and ancillary units .

Wedge Mounts - Series DT (Bolt Through)

DT Series anti vibration mounts are also preferred in machines which must be anchored to the ground due to low bed rigidity or due to large horizontal or vertical forces. DT series Mounts permanently anchor the machine to the foundation, offering highly effective vibration transmission control and impact mitigation. along with alignment. The selection of the DT mounts depends on the static and dynamic loading of the machines. Anchor bolts are used to fix the machine to the foundation, which can be used on any one of the two ecentric through holes supplied. Anti-vibration insulating discs are required with DT Series mounts to prevent vibration travel through the bolts into the foundation. While installing the machine, the anchoring bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine to ensure maximum stability. Range of Applications: Drilling and milling machines, machining centres, special machines, long-bed lathes, long - bed planers, power presses, stamping machines, die casting machinery, boring machines etc.

Wedge Mounts - Series DB (Bolt On)

Applications of Wedge Mounts - Series DB: CNC/VMC Machining Centres Injection Moulding Machines Mechanical Power Presses

Wedge Mounts - Series DF Wedge Mounts Series DF (Free Standing)

Freely placed on the mounts (Series DF)

Wedge Mounts - Series DTH (Bolt Through)

DTH Series mounts are available in three options - Free Standing, Bolt-On and Bolt-Through

Series DF With Non Magnetic Aluminium Body

Generator Set Mounts

Wedge Mounts

Precision Levelling Mount

Anti Vibration Wedge Mounting
