Anti-Vibration Pads

Dynemech Shock Mounts Series DXO-3

Dynemech DXO Mounts are suitable for very heavy presses. These mounts are also customized to cover the complete base area of the machine. These mounts provides High Shock Isolation. Mode: DXO3 Size :550x550x190 To 1100x550x190 Load Capacity (Kg.): 50,000 To 90,000 Natural Frequency (Hz): 7 Working Temp Range C: (-20 T0 +70) Weight ( Kg.): 365 Kg/pc Material:Low Carbon Steel Sheet (IS2062) Colour: Green And Dark Grey Number Of Box:01 Box Dimension:48"X24"X12" Price @108560/-per piece

Dynemech Rubber Bush, Series Neoprene Spring 82-105

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements. Outer Dia OD(mm):82mm, Inner Dia. ID(mm):51mm Height-105(mm) Load Capacity (Kg.): 500 Kg/pc Natural Frequency (Hz): 7 Shore A Hardness: 70-75 Working Temp Range C: (-16 To 90) Material:Neoprene Colour:Black And Green 04 Nos Weight is: 6 Kg Number Of Box:01 Box Dimension:13"X8"7" Price @900/-per piece

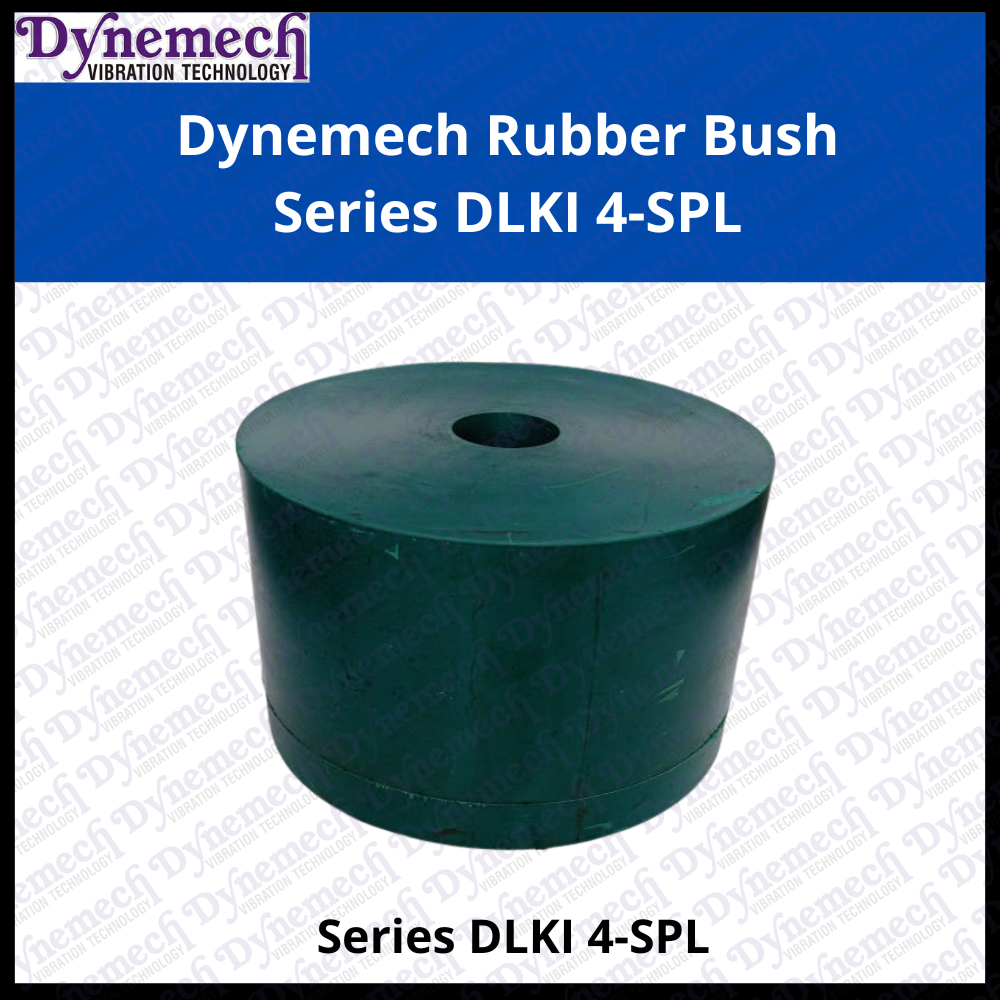

Dynemech Rubber Bush, Series DLKI 4-SPL

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements.

Dynemech Rubber Bush, Series DLKI 5-175

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements. Inner Dia ID(mm):Dia:68mm To 50mm, Size :Dia-200(mm) To 220(mm) , Height-175(mm) To 100(mm) Load Capacity (Kg.): 9000 Kg/pc To 6000 Kg/pc Natural Frequency (Hz): 7 To 7 Shore A Hardness: 80-85 To 70-75 Working Temp Range C: (-16 To +90) Material:Composite of Nitrile Rubber, Syntnetic Fibre and Cork Partices Colour:Black And Green 04 Nos Weight is :25 Kg Number Of Box:01 Box Dimension:13"X8"X7" Price @5930/-

Dynemech Rubber Bush, Series Insulation Disc M16

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements. Size :Outer Dia OD(mm): 40mm To 75mm, Inner Dia. ID(mm):17mm To 31mm Height-25(mm) To 25(mm) Load Capacity (Kg.): 95 Kg To 400 kg Natural Frequency (Hz): 8 Shore A Hardness: 70-75 Working Temp Range C: (-16 To +90) Material:Composite of Nitrile Rubber, Syntnetic Fibre and Cork Particles Colour:Black And Green 04 Nos Weight is: 1 Kg Number Of Box:01 Box Dimension: 5"X5"X5" Price @402/-per piece

Dynemech Rubber Bush, Series RB 165-60

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements. Outer Dia OD(mm):100mm To 165mm, Inner Dia.ID(mm):100mm Height-125(mm) To 60(mm) Load Capacity (Kg.): 750 Kg/pc To 1400 Kg/pc Natural Frequency (Hz): 7-8 Shore A Hardness: 70-75 To 80-85 Working Temp Range C: (-16 To +90) Material:Composite of Nitrile Rubber, Syntnetic Fibre and Cork Partices Colour:Black And Green 04 Nos Weight is: 3 Kg Number Of Box:01 Box Dimension:13"X8"X7" Price @2240/-

Dynemech Rubber Bush, Series Insulation Disc M30

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements. Outer Dia: 40mm To 75mm, Inner Dia. ID(mm):17mm To 31mm Height-25(mm) To 25(mm) Load Capacity (Kg.): 95 Kg To 400 kg Natural Frequency (Hz): 8 Shore A Hardness: 70-75 Working Temp Range C: (-16 To +90) Material:Composite of Nitrile Rubber, Syntnetic Fibre and Cork Particles Colour:Black And Green 04 Nos Weight is: 1 Kg Number Of Box:01 Box Dimension:5"X5"X5" Price @483.8/-

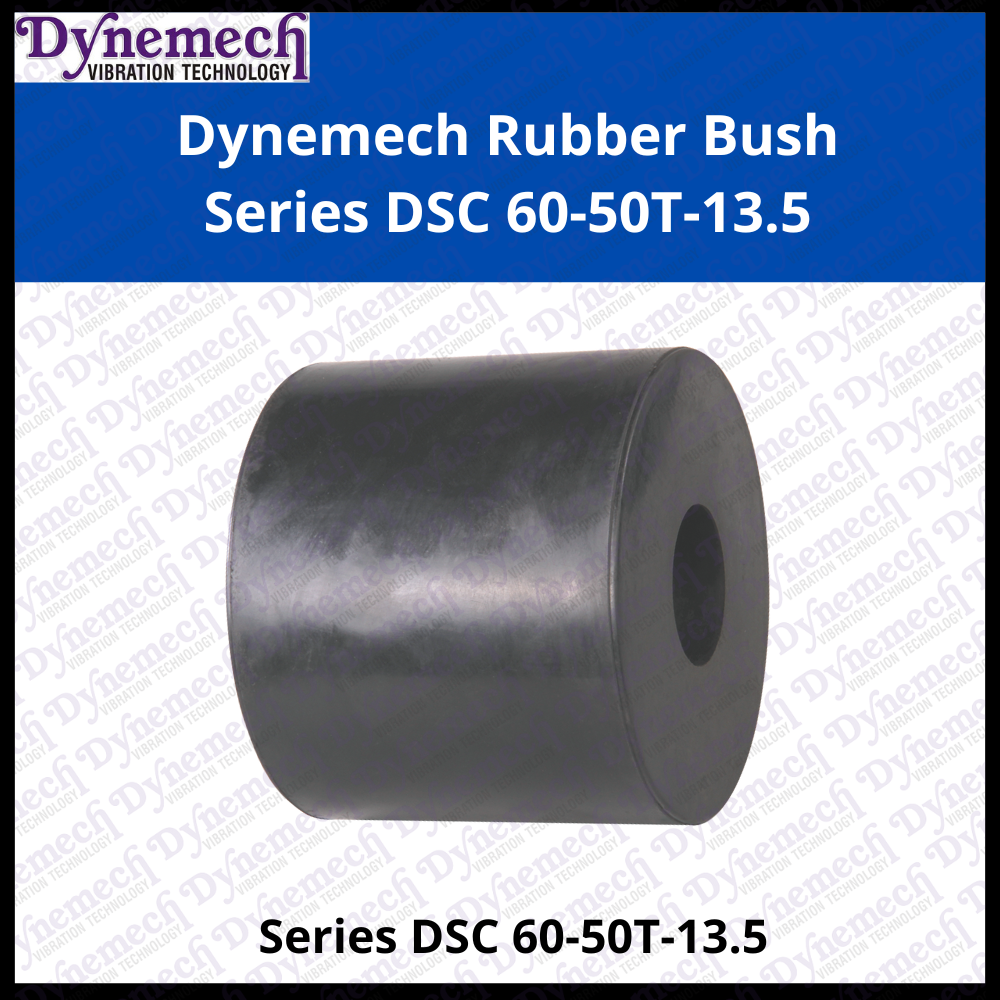

Dynemech Rubber Bush, Series DSC 60-50T-13.5

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements. Size :Dia-60(mm), Inner Dia. :13.5(mm) Height-50(mm) Load Capacity (Kg.): 200 Kg/pc Natural Frequency (Hz): 6 Shore a Hardness: 80-85 Working Temp Range C: (-16 To +90) Material:Composite of Nitrile Rubber, Syntnetic Fibre and Cork Particles Colour:Black And Green 04 Nos Weight is:1 Kg Number Of Box:01 Box Dimension:5"X5"X5" Price @354/-

Dynemech Shock Mounts Series DXO-1

Dynemech DXO Mounts are suitable for very heavy presses. These mounts are also customized to cover the complete base area of the machine. These mounts provides High Shock Isolation. Model: DXO-1 Size :550x550x190 To 1100x550x190 Load Capacity (Kg.): 50,000 To 90,000 Natural Frequency (Hz): 7 Working Temp Range C: (-20 T0 +70) Weight ( Kg.):190 Kg/pc Material:Low Carbon Steel Sheet (IS2062) Colour: Green And Dark Grey Number Of Box:01 Box Dimension:26"X24"X12" Price @44132/-per piece

Dynemech Rubber Bush, Series RB 100-125

Dynemech Rubber Bush are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcement based in the application requirements.

Dynemech Spring Isolator Series MAI

A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine.

Dynemech Membrane Air Spring , Series DMAS-SL

Dynemech DMAS system consists of three master pneumatic isolators for 3-point precision levelling

Dynemech Mac Level Mounts Series DML-5

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

Dynemech Compac Machinery Mounts Series DH-3

DYNEMECH Compac Machinery Mounts Series DH3 uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130 Kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5kg) with resilient stop, It is ideal for mobile or martine use. Domed shape cover to protect against oil contamination. Light weight and compact.

Dynemech Mac Level Mounts Series DML-1

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

Dynemech Compac Machinery Mounts Series DH-1

DYNEMECH Compac Machinery Mounts Series DH1 uses rubber in compression and shear. They provide tight tolerances on stiffness rate for accurate vibration calculations. Load range is from 40 to 130 Kgs per piece. The strong base metal withstands high shock loads without deformation. Fitted as standard with a shock-proof device (up to 4.5kg) with resilient stop, It is ideal for mobile or martine use. Domed shape cover to protect against oil contamination. Light weight and compact.

Dynemech Level Grip Mounts Series DRM2-232-S2

Dynemech Level Grip Mounts Series DRM2-232-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.

Dynemech Jackup Mounts Series DJM-0

Dynemech Jackup mounts DJM-0 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.

Dynemech Jackup Mounts Series DJM-2

Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation.

Dynemech Level Grip Mounts Series DRM1-150-S2

This Screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine.

Anti-Vibration Pads , Series DLKI5-175

DYNEMEH RUBBER BUSH Series DLKI5 are highly effective And Compact Vibration damper for a variety of application Like-Compressors , pump,ID & FD fans ,motors,mahine tools , Gensets ,Air conditioners ,Labortory Equipment etc.. These Mounts anbe used for load appliations in both compression and shear.

Dynemech Anti Vibration Rubber Bush

DYNEMEH RUBBER BUSH Series are highly effective And Compact Vibration damper for a variety of application Like-Compressors , pump,ID & FD fans ,motors,mahine tools , Gensets ,Air conditioners ,Labortory Equipment etc.. These Mounts anbe used for load appliations in both compression and shear.

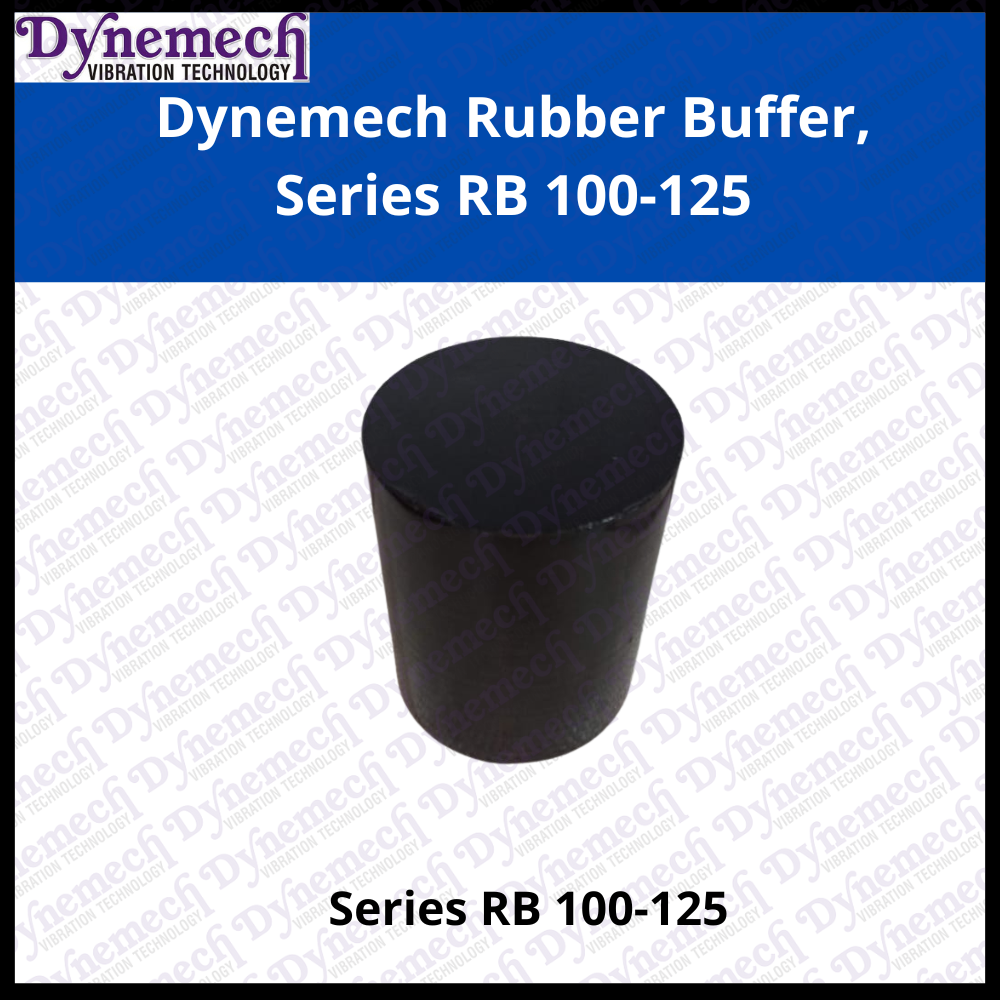

Dynemech Rubber Buffer, Series RB 100-125

DYNEMEH RUBBER BUFFER Series are highly effective And Compact Vibration damper for a variety of application Like-Compressors , pump,ID & FD fans ,motors,mahine tools , Gensets ,Air conditioners ,Labortory Equipment etc.. These Mounts anbe used for load appliations in both compression and shear.

Machine Base Mounts, Series SLKR

Compressors and Pump Sets , Grinding Machines,Testing and Measuring Machinery , Die Casting Machines , Injection Moulding Machines, Diesel Generators , Hydraulic Power Packs , Rubber Machinery, Packaging and Printing Machinery , Presses: Forging, Hydraulic and Mechanical , Textile Machines, CNC Machines etc

Machine Base Mounts , Series SLS

Dynemech Machine Base Mounts Series SLS having stainless steel body and square/rectangular base enable wide area load distribution over oors. Series SLS are suitable for placing in the pocket of the machine base.

Machine Base Mounts , Series SLM (M)

Industrial production and processing centres, assembly stations and in equipments such as Compressors, Tool Room Machines, Plastic injection Moulding Machines,, Printing and Textile Machines, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors, etc.

Machine Base Mounts , Series SLM (RA)

Industrial production and processing centres, assembly stations and in equipments such as Compressors, Tool Room Machines, Plastic injection Moulding Machines,, Printing and Textile Machines, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors, etc.

Machine Base Mounts , Series SLM (F)

Industrial production and processing centres, assembly stations and in equipments such as Compressors, Tool Room Machines, Plastic injection Moulding Machines,, Printing and Textile Machines, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors, etc.

Machine Base Mounts , Series SLT

Compressors, Tool Room Machines, Plastic injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines , Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors, Power Presses, Stamping Machines, Shearing Machines, Punching Machines, For Machine with high vertical impact.

Machine Base Mounts , Series SLTL

Compressors, Tool Room Machines, Plastic injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines , Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors., Power Presses, Stamping Machines, Shearing Machines, Punching Machines, For Machine with high vertical impact.

Dynemech Wedge Mounts -DBSP

Dynemech Mounts Series DBSP is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.

SCREW DLM

SCREW SUPPORT

Die Cushion Pads and Die Inverting Cushions
